DCR – Short for DC Resistance, is measured in Ohms and is the total resistance of the copper wire wound around a coil form. The length of the coil form, the number of turns and the gauge of wire all affect the DCR reading. DCR is often used as a gauge of output because as the turns increase, so does the output, though magnet type and the coil geometry also influence output. Magnet – We use several different magnet formulations: Alnico 2, Alnico 3, Alnico 4, Alnico 5, Alnico 6, Alnico 8 and Ceramic 5/8. In the case of pickups, the most significant characteristic is the gauss strength, which is a measure of the density of the magnetic field. Of the magnets we use, Alnico 3 has the lowest gauss strength. From there in order of ascending strength you have A2, A4, A5, A6, Ceramic and A8. As the gauss strength goes up, so does the output. The magnets at the lower end of the scale tend to produce a softer attack and a degree of “bloom” to the envelope of the note.
Ceramic magnets should be considered as an individual case because they do not contain any nickel or iron. This has the effect of decreasing the inductance of the pickup and significantly raising the resonant frequency. It is for this reason that many consider ceramic magnets to have a brittle sound, not their gauss strength. Looking at this from another point of view, ceramic magnets can be said to produce increased clarity, better note definition and faster response to picking. Output – The overall output of a passive pickup is influenced by several design factors: number of turns of wire on the coil(s), strength of the magnet, coil geometry and magnetic circuit geometry.The output of an active pickup is influenced by the same factors but is predominantly determined by the design of the onboard preamp.

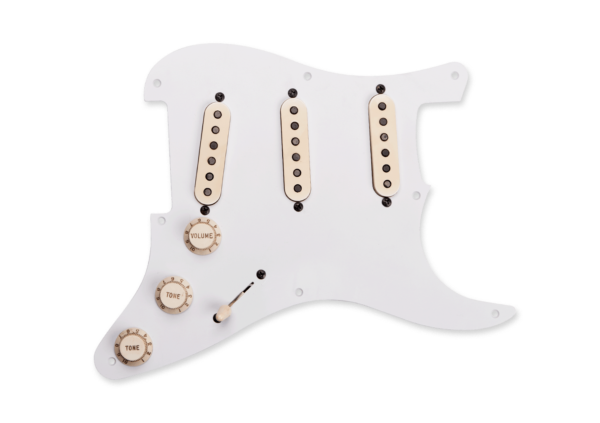

With its ultra period-correct look and sound, the Antiquity Texas Hot pickguard gives you an authentic vibe all day long. It’s loaded with our Antiquity Texas Hot pickup set, which includes the hotter Custom Bridge for added versatility and an RW/RP (reverse would/reverse polarity) middle for noiseless 2 and 4 positions along the 5-way selector switch.
The Antiquity Texas Hot pickups are made using our custom wind and specially aged Alnico II rod magnets to give you that unique vintage spank and sparkle. You will find the tone of this preloaded pickguard to be as authentic as its look. Each Antiquity Pickguard is personally signed by Seymour. We use single-ply white matte pickguard material with the classic 8-hole screw pattern.
The 50s look is further enhanced by the authentic potentiometers and cap values we chose, along with the old-school yellow paper tape that holds the pickup wires together. These details were chosen to give you a truly vintage experience. Each pickup is lacquered and potted in lamp black paraffin wax, like the originals.
Hand Built in California. Period Correct. Every Time.
Our team of master builders have been with us for an average of 21 years—they take pride in crafting our products to create the most amazing sound possible.
