DCR – Short for DC Resistance, is measured in Ohms and is the total resistance of the copper wire wound around a coil form. The length of the coil form, the number of turns and the gauge of wire all affect the DCR reading. DCR is often used as a gauge of output because as the turns increase, so does the output, though magnet type and the coil geometry also influence output. Magnet – We use several different magnet formulations: Alnico 2, Alnico 3, Alnico 4, Alnico 5, Alnico 6, Alnico 8 and Ceramic 5/8. In the case of pickups, the most significant characteristic is the gauss strength, which is a measure of the density of the magnetic field. Of the magnets we use, Alnico 3 has the lowest gauss strength. From there in order of ascending strength you have A2, A4, A5, A6, Ceramic and A8. As the gauss strength goes up, so does the output. The magnets at the lower end of the scale tend to produce a softer attack and a degree of “bloom” to the envelope of the note.
Ceramic magnets should be considered as an individual case because they do not contain any nickel or iron. This has the effect of decreasing the inductance of the pickup and significantly raising the resonant frequency. It is for this reason that many consider ceramic magnets to have a brittle sound, not their gauss strength. Looking at this from another point of view, ceramic magnets can be said to produce increased clarity, better note definition and faster response to picking. Output – The overall output of a passive pickup is influenced by several design factors: number of turns of wire on the coil(s), strength of the magnet, coil geometry and magnetic circuit geometry.The output of an active pickup is influenced by the same factors but is predominantly determined by the design of the onboard preamp.

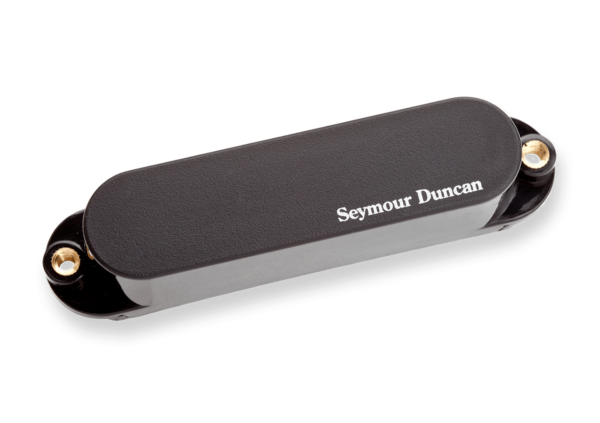

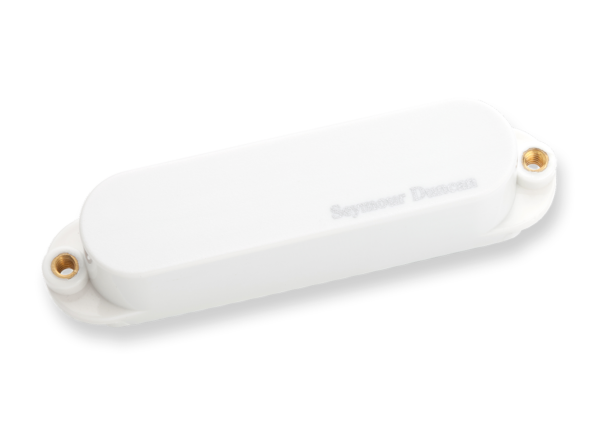

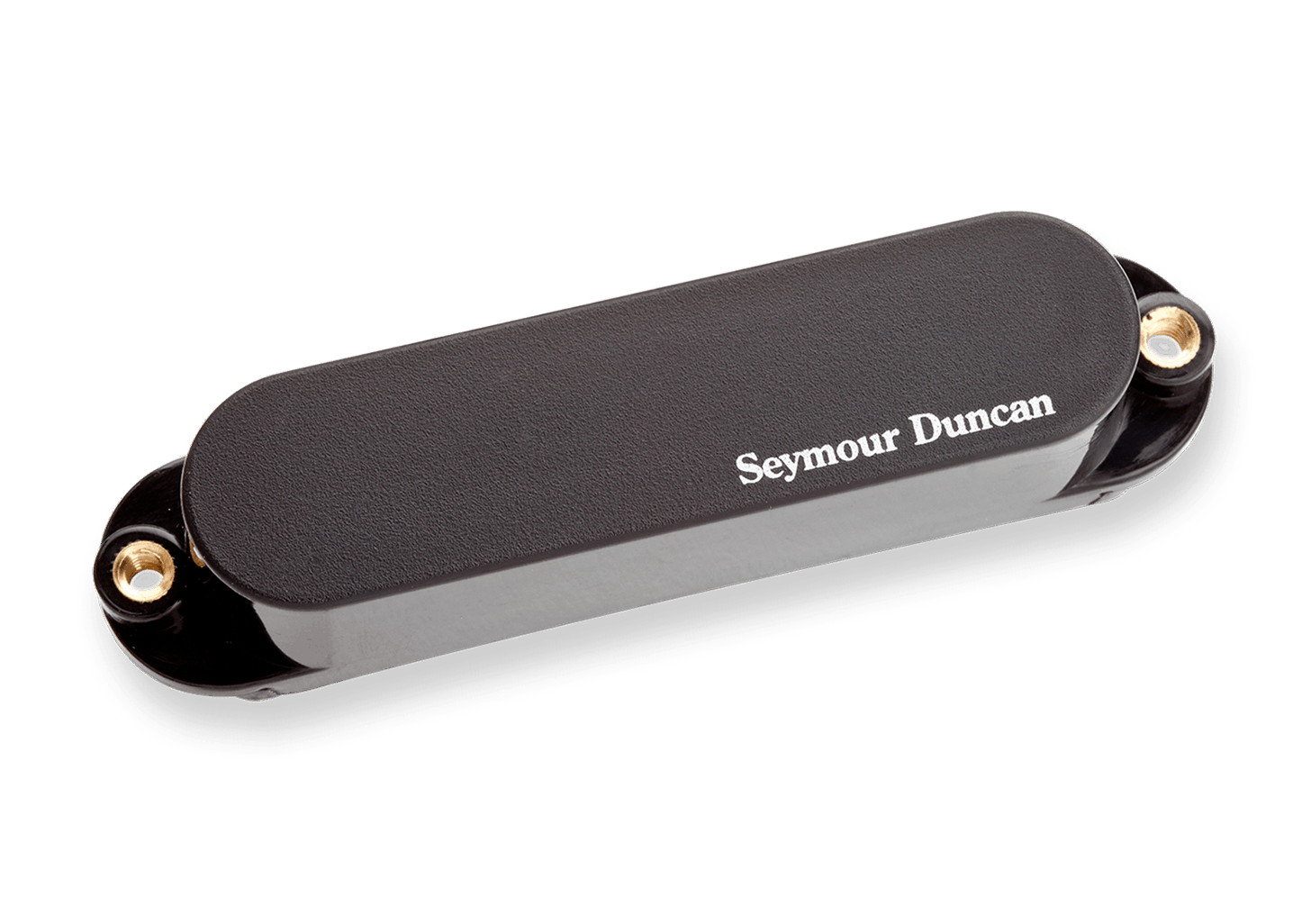

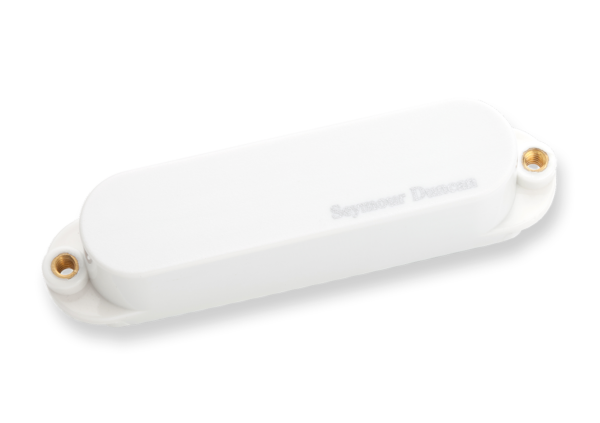

Blackouts for Strat are voiced for heavy rock and metal, but they can do a lot more than that. Their strong active signal is perfect for driving high-gain amps and long effects chains, but will also provide studio-quality clean pop and funk sounds. Anything from crushing power-chord riffs and searing leads to sparkling, compressed clean tones are possible.
Blackouts for Strat have a unique dual-pin configuration on the underside of the pickup for two modes of output: moderate and high-gain. The pins can also be wired to a mini-switch or a push/pull pot for an onboard boost. If you love the tone and playability of your Strat-style guitar, but hate the hum and low output of the pickups, this is the upgrade for you.

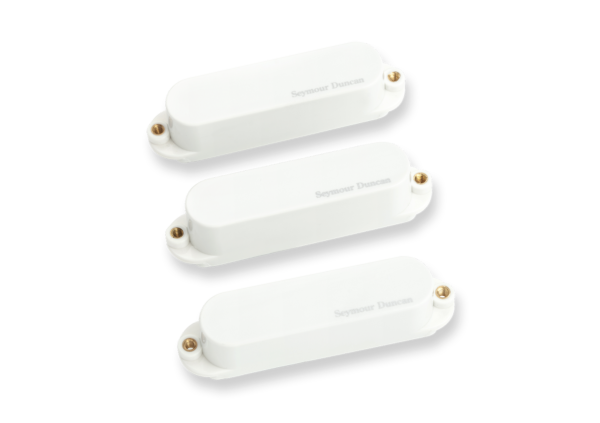

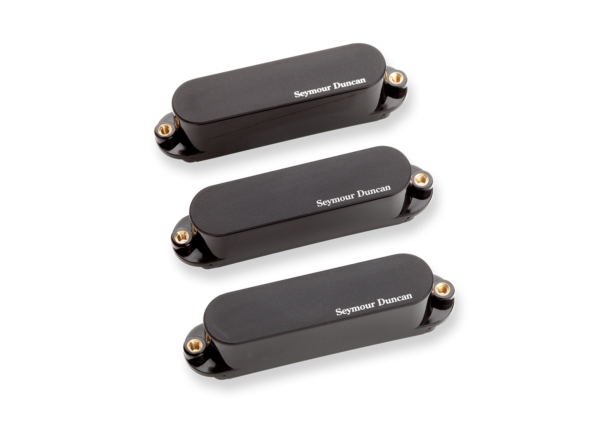

Available individually or as a complete set, Blackouts for Strat retrofit any standard single-coil pickup rout and ship with 25k pots, tone capacitor, stereo jack, battery clip, and other mounting hardware.
Neck/Middle position models will have the same output, wind direction and magnetic polarity.
All sets, except the Jimi Hendrix signature model, come with a Middle RWRP as the Middle Pickup.
Middle RwRP position (reverse wind/reverse polarity) – choose this to have a pickup that will be hum-cancelling with one of our neck or bridge models.
The E.Q. chart gives you a general idea as to the bass, mids and treble of each pickup position
Neck
B
M
T
Middle
B
M
T
Bridge
B
M
T
Hand Built in California. Period Correct. Every Time.
Our team of master builders have been with us for an average of 21 years—they take pride in crafting our products to create the most amazing sound possible.
Take Your Tone For A Test Drive
If you’re not 100% pleased with the sound of your Seymour Duncan pickups, you can exchange them for up to 21 days after purchase. This offer applies to any pickups bought from an authorized Seymour Duncan dealer in the USA.
