DCR – Short for DC Resistance, is measured in Ohms and is the total resistance of the copper wire wound around a coil form. The length of the coil form, the number of turns and the gauge of wire all affect the DCR reading. DCR is often used as a gauge of output because as the turns increase, so does the output, though magnet type and the coil geometry also influence output. Magnet – We use several different magnet formulations: Alnico 2, Alnico 3, Alnico 4, Alnico 5, Alnico 6, Alnico 8 and Ceramic 5/8. In the case of pickups, the most significant characteristic is the gauss strength, which is a measure of the density of the magnetic field. Of the magnets we use, Alnico 3 has the lowest gauss strength. From there in order of ascending strength you have A2, A4, A5, A6, Ceramic and A8. As the gauss strength goes up, so does the output. The magnets at the lower end of the scale tend to produce a softer attack and a degree of “bloom” to the envelope of the note.
Ceramic magnets should be considered as an individual case because they do not contain any nickel or iron. This has the effect of decreasing the inductance of the pickup and significantly raising the resonant frequency. It is for this reason that many consider ceramic magnets to have a brittle sound, not their gauss strength. Looking at this from another point of view, ceramic magnets can be said to produce increased clarity, better note definition and faster response to picking. Output – The overall output of a passive pickup is influenced by several design factors: number of turns of wire on the coil(s), strength of the magnet, coil geometry and magnetic circuit geometry.The output of an active pickup is influenced by the same factors but is predominantly determined by the design of the onboard preamp.

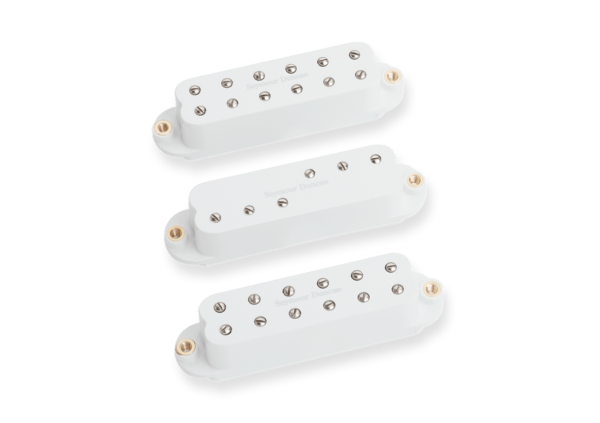

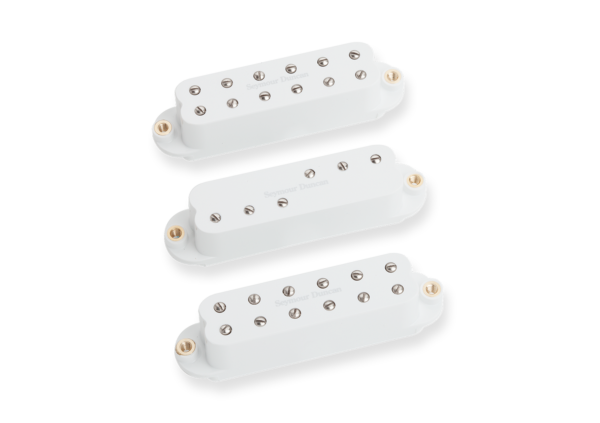

This 3 pickup set will give your Strat into the ultimate versatile workhorse guitar with its wide variety of tonal options. The JB Jr. bridge model will take your Strats bridge position to a whole new level. This high output single coil sized humbucker will give you nice crunchy chords, and screaming lead tone with that classic upper midrange cut. There will be tons of bright harmonic sparkle, and a tight focused low end.
The middle position Duckbucker is there to add that sparkly single coil tone in positions 2, 3, & 4. Its unique, split-pole pattern with 3 poles on each coil, also contributes to the single coil bounciness and snappy low end. The Little 59 in the neck position has a nice, balanced P.A.F.-like response for big, full chords, and fat, punchy solos. It has that pleasing blend of warmth and bite when you dig in.
Hand built in Santa Barbara, CA, these pickups all use a ceramic bar magnet, come with a 4-conductor lead wire for multiple wiring options, and are wax potted for squeal free operation.
All sets, except the Jimi Hendrix signature model, come with a Middle RWRP as the Middle Pickup.
Middle RwRP position (reverse wind/reverse polarity) – choose this to have a pickup that will be hum-cancelling with one of our neck or bridge models.
Hand Built in California. Period Correct. Every Time.
Our team of master builders have been with us for an average of 21 years—they take pride in crafting our products to create the most amazing sound possible.
Take Your Tone For A Test Drive
If you’re not 100% pleased with the sound of your Seymour Duncan pickups, you can exchange them for up to 21 days after purchase. This offer applies to any pickups bought from an authorized Seymour Duncan dealer in the USA.
