DCR – Short for DC Resistance, is measured in Ohms and is the total resistance of the copper wire wound around a coil form. The length of the coil form, the number of turns and the gauge of wire all affect the DCR reading. DCR is often used as a gauge of output because as the turns increase, so does the output, though magnet type and the coil geometry also influence output. Magnet – We use several different magnet formulations: Alnico 2, Alnico 3, Alnico 4, Alnico 5, Alnico 6, Alnico 8 and Ceramic 5/8. In the case of pickups, the most significant characteristic is the gauss strength, which is a measure of the density of the magnetic field. Of the magnets we use, Alnico 3 has the lowest gauss strength. From there in order of ascending strength you have A2, A4, A5, A6, Ceramic and A8. As the gauss strength goes up, so does the output. The magnets at the lower end of the scale tend to produce a softer attack and a degree of “bloom” to the envelope of the note.
Ceramic magnets should be considered as an individual case because they do not contain any nickel or iron. This has the effect of decreasing the inductance of the pickup and significantly raising the resonant frequency. It is for this reason that many consider ceramic magnets to have a brittle sound, not their gauss strength. Looking at this from another point of view, ceramic magnets can be said to produce increased clarity, better note definition and faster response to picking. Output – The overall output of a passive pickup is influenced by several design factors: number of turns of wire on the coil(s), strength of the magnet, coil geometry and magnetic circuit geometry.The output of an active pickup is influenced by the same factors but is predominantly determined by the design of the onboard preamp.
Please use the amp to the right to select which position, tone and mix you'd like to hear sample of.
Description

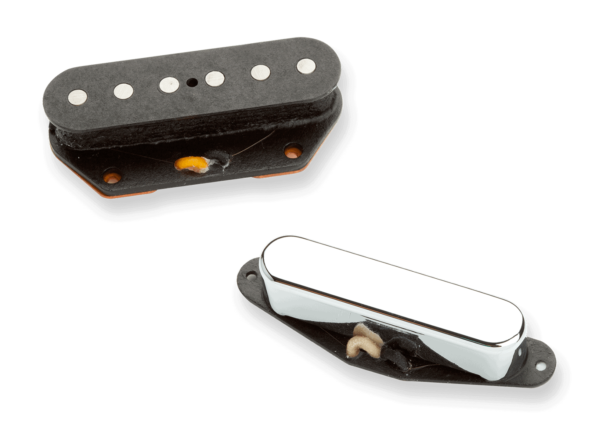

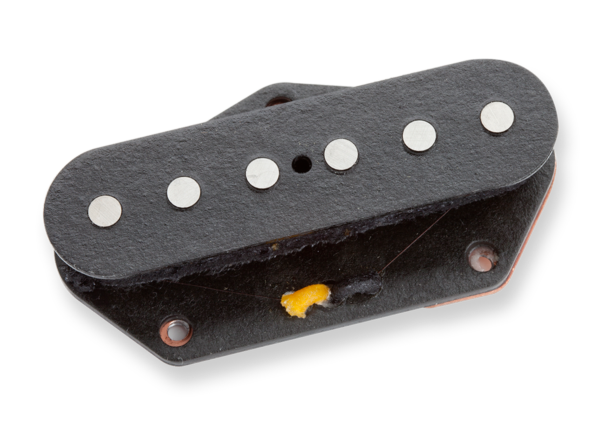

A faithful tribute to the 1950 original, our Vintage Broadcaster is the perfect choice for discerning players who demand something more from their Tele lead pickup. Our Broadcaster uses a special wind that best represents this pioneering era in Fender history. The Alnico 5 magnets with a slightly larger diameter of .197 and higher output coax biting treble and snarly mids for raucous riffs and stinging lead runs from any Telecaster. Try it in front of a fuzz pedal for that unmistakable British rock sound. Pair with our Vintage Tele Rhythm for great vintage setup.
Like all our Vintage models, we stay true to the smallest details. We hand grind our magnets, then hand assemble the bobbins from the traditional Forbon and dip them in lacquer before winding. The lacquer stabilizes the Forbon for decades of use. After winding, the pickup is wrapped with black cotton yarn and vintage style waxed cloth hookup wire is soldered to the coil eyelets. Wax potting with the classic tele copper plated steel bottom plate installed completes the pickup for squeal free performance.
The E.Q. chart gives you a general idea as to the bass, mids and treble of each pickup position
Bridge
B
M
T
Hand Built in California. Period Correct. Every Time.
Our team of master builders have been with us for an average of 21 years—they take pride in crafting our products to create the most amazing sound possible.
