Dark Sun


As part of the three-guitar assault that makes up Periphery, Mark Holcomb might be best known for bombastic riffs and liquid leads, but he’s no stranger to the atmospheric and ambient side of guitar. The lush clean passages, accented by crystalline reverb and chiming delay tones that break up Periphery’s aggression are part of the formula that makes the band so special – meaning the bar was set high when we set out to create a pedal that could meet Mark’s expectations.

1 in stock

Product Details


(View User Guide Tab for Software updates).

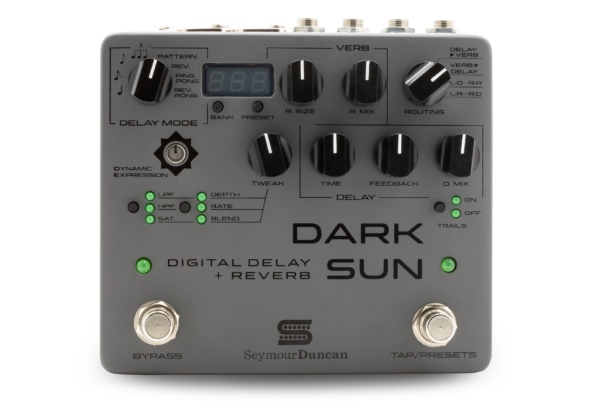

Dark Sun was crafted based on Mark Holcomb’s favorite sounds from the Andromeda Dynamic Delay and the Silver Lake Dynamic Reverb. Dark Sun combines a warm and clean digital delay algorithm with a lush Hall reverb, and the ability to route the two in just about any configuration you could want. And, you can shape the EQ of the effect, add saturation, or lush choral modulation, or use Dynamic Expression to control the mix of the effect with your playing. Mark wanted the ability to change the order of the effects on the fly and assign them to either the left or right channel – so we designed the routing control; a 4-position switch that can create dramatically different sounds depending on how it’s set.


Running Delay first means new reverberations are created with each repeat – while putting Reverb first will create a less natural and more dramatic repeat of the reverb trail. Setting Delay and Reverb to the left and right channels allows you to use Dark Sun’s two effects in stereo or as two separate pedals in one. A complement of filters, gain, and modulation round out the feature set. Applied only to the wet signal, they can totally re-shape the character of the effect. Use the Low Pass Filter to soften and warm up the sound, or the High Pass Filter to cut big low-end repeats, allowing you to use high mix settings without overpowering your playing.


Saturation adds gain for pleasant lo-fi effects, tape-like saturation, or shoegaze-style distorted repeats. And, the modulation section can be assigned to the delay, the reverb, or both. Dynamic Expression has been distilled to one purpose for this pedal – to control the mix of the effect with your playing. Turn it on and play hard and the mix control is automatically ducked, so the delay and reverb get out of your way. When you play softer or let a note ring out, the mix level will rise again, swelling in ambient trails. Dark Sun has 4 tap divisions available – quarter notes, dotted eighths, eighths, and triplets. You can set the tempo via the tap footswitch,

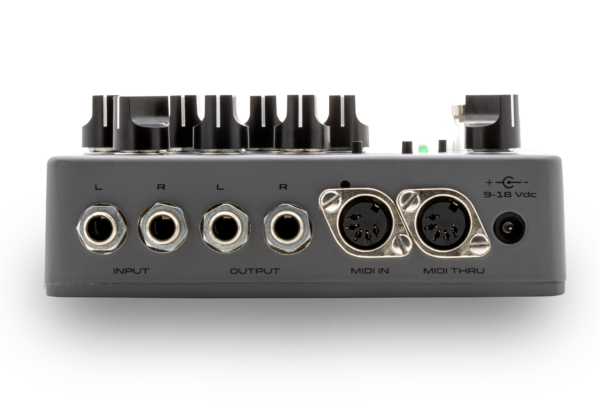

Time control, or MIDI – and the time can be displayed in milliseconds or beats per minute (which you can toggle by holding the trails switch while powering up the device). It is fully MIDI capable, and features a micro-USB port for firmware updates and preset management. Like all Seymour Duncan pedals, Dark Sun was dreamed, designed, and built right here in the US, and features true-bypass switching.

User Guide

Sample Settings

  • Getting Started

    A simple quarter note delay line and basic reverb sound make this a good place to get to know Dark Sun.
  • Extra Recollection

    This delay-only patch uses the Low Pass Filter, High Pass Filter, Saturation, and Modulation to emulate a beloved analog delay.
  • Patterns

    Repeats at the quarter note and dotted eighth combine with reverb, soft chorus, and a subtle roll-off of lows and highs to make this hypnotic, rhythmic patch.
  • Reverb Swells

    Large reverb in front of a reverse delay creates a dreamy reverse verb, with rolled off highs, heavy saturation, and deep, slow modulation.
  • Brevifolia

    Dotted Eighth Delay with heavy roll offs in highs and lows, high saturation, and deep, slow modulation. Dynamic Expression helps keep it under control.
  • Infinite Eights

    Maxed feedback and eighth note delay with high saturation creates a textural wash of repeats, reigned in by low mix settings and Dynamic Expression.
  • Springy

    Short Reverb and Delay times combined with careful sculpting of the lows and highs creates this Spring Reverb simulation.
  • Vibrato Too

    Using an ultra-short delay time and fully wet mix allows you to apply the modulation section to your playing in real time, creating this pleasing vibrato tone.
